FN990B40W01T010A00

FN990B40 M.2 modem is Telit Cinterion's next generation 5G data card. It feature sub-6-only technology with state-of-the-art LTE, WCDMA and GNSS support.
The data cards is ideal for future-proof broadband applications, ensuring 5G and Gigabit LTE benefits in a feature-packed modem.

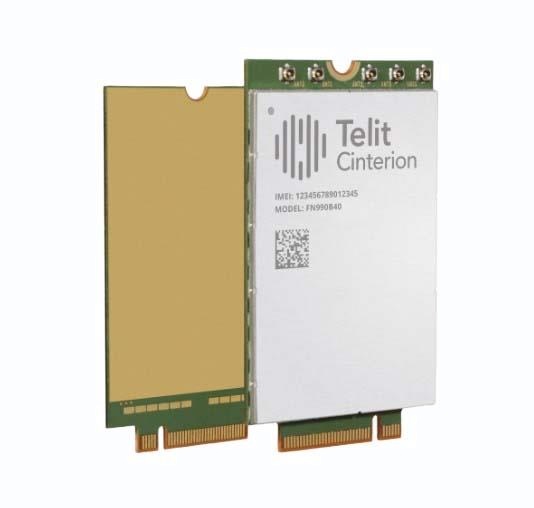

 FN990B40W01T010A00 - FN990B40 5G M.2 module
Part No. Description Price Stock
FN990B40W01T010A00 FN990B40 5G M.2 module $267 ∗
∗ Standard lead time is 1 week

Features

  • Supports 5G sub-6 FDD and TDD for global deployment
  • Supports SA and NSA operations, 5G core network Opt. 3a/3x and Opt. 2 for full network compatibility
  • Latest generation 4G/5G Rel 17 chipset
  • 4G Cat 20 up to 5xCA
  • Intra- and interband UL CA supported on 4G networks for better throughput performance for uplink-centric applications (e.g., 4K/8K video streaming)
  • 3G HSPA+ Rel 8 for fallback to legacy networks
  • Standard M.2 (NGFF) data card form factor
  • Supports PCIe Gen 3 and USB 3.1 Gen 2 for maximum application design flexibility
  • State-of-the-art GNSS receiver with L1 and L5 bands support
  • Supports OpenWRT Linux distribution for easy and secure management of network routing capabilities
  • Warranty Period: 1 year
