BSCB-1 is a low-cost, highly expandable carrier board for BASIC Stamp Microcontroller Modules (BS2) and other Third-Party Stamp compatible modules
Ideal for Internet of Things (IoT) applications.

BSCB-1 - BASIC Stamp Carrier Board
Part No. Description Price Stock
BSCB-1 BASIC Stamp Carrier Board $29
BSCB-1(No Adapter) BASIC Stamp Carrier Board $23

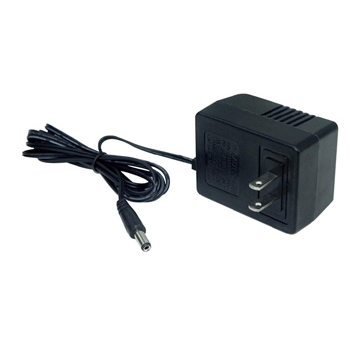

PWR-6VDC-1A-P 6VDC Adapter, 1A $12
∗ Standard lead time is 1 week


  • 24-pin DIP socket for a BASIC Stamp Module (BASIC Stamp Module itself is not included)
  • RS232 Serial Port connector for applications or for In-circuit Programming of the BASIC Stamp through the serial port. ( Serial cable included )
  • Single row and dual row 14-pin LCD connectors ( with contrast adjustment for LCD )
  • 20-pin Expansion connector for plugging peripheral boards
  • 6-12 VDC operation ( Adapter included )
  • On-board 5 Volt regulator
  • Prototyping area for adding custom circuits
  • BSCB board allows interfacing BASIC Stamp to a wide variety of peripheral boards
  • Warranty Period: 3 years
