PCB Layout


We use Eagle CAD extensively for product development and custom projects, using surface-mount, through-hole and mixed-mode designs. We also have experience with other CAD/CAM packages and we can use customer's CAD/CAM program as needed. We have experience in creating very dense and miniature boards with a minimum number of layers. The example MINI-MAX/51-E board shown below is only 2 layers and the example MINI-MAX/ARM-E board shown below is only 4 layers.

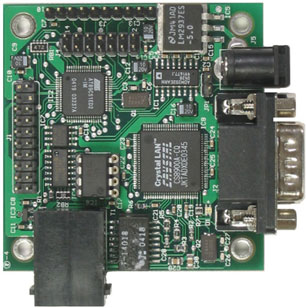

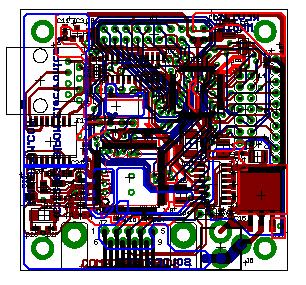

MINI-MAX/51-E board

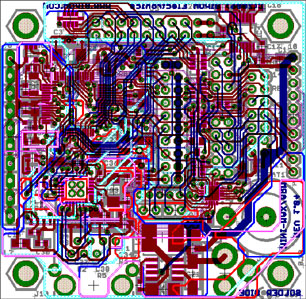

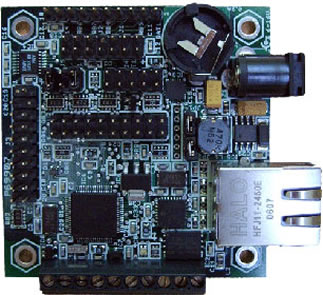

MINI-MAX/ARM-E board
