MINI-MAX/51-E

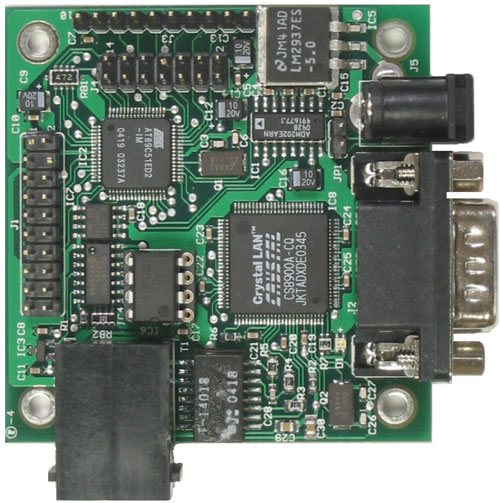

MINI-MAX/51-E is a 8051 compatible microcontroller board with the ATMEL AT89C51ED2 chip and a CS8900 built-in ethernet controller.
Ideal for Internet of Things (IoT) applications.

 MINI-MAX/51-E - Microcontroller board with ATMEL AT89C51RD2, 64K Flash, 2K RAM, 32 I/O, RS232, Ethernet
Part No. Description Price Stock
MINI-MAX/51-E Microcontroller board with ATMEL AT89C51RD2, 64K Flash, 2K RAM, 32 I/O, RS232, Ethernet $79 39
MINI-MAX/51-E(No Adapter) Microcontroller board with ATMEL AT89C51RD2, 64K Flash, 2K RAM, 32 I/O, RS232, Ethernet $73 ∗
PWR-6VDC-1A-P 6VDC Adapter, 1A $12 ∗
∗ Standard lead time is 1 week

Features

  • AT89C51ED2: 44 Mhz 8051 compatible microcontroller,64K Flash, 2K RAM, 2K EEPROM
  • CS8900 built-in Ethernet controller
  • MINI-MAX/51-E Board includes all the Ethernet components (transformer,RJ-45 jack, etc.) and it can be used on any 10-Mbit twisted-pair Ethernet network
  • Full open source TCP/IP stack. It includes all layers: CS8900/ARP/IP/ICMP/TCP
  • IPX layer. Users can use this layer on a local network ( A Visual C++ example provided for IPX protocol )
  • MINI-MAX/51-E Board is connector compatible with MINI-MAX/51-C2. Users can replace MINI-MAX/51-C2 with MINI-MAX/51-E, without making any changes to other connected equipment
  • Many project examples with full source code, including Web server, IPX server, Telnet server
  • Online Demo available at http://75.26.29.17
  • 6 Volts DC Adapter, serial cable, serial downloader, online technical manual and schematics
  • Warranty Period: 3 years

The adapter is 110VAC type. Please let us know if you would like to receive a 220VAC adapter for your country or if you would like to have the board shipped without an adapter.
