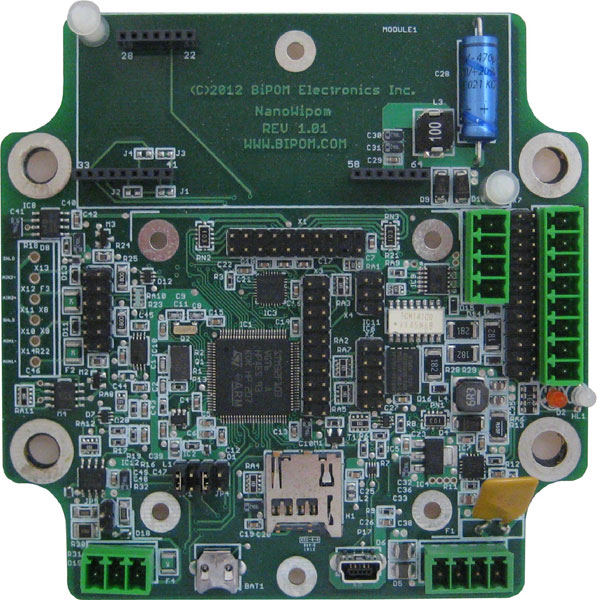

nanoWiPOM


nanoWiPOM is a miniature wireless remote monitoring computer. Taking advantage of cellular networks, nanoWiPOM allow remote monitoring of voltages, currents, frequencies and many other physical parameters.
Ideal for Internet of Things (IoT) applications.

nanoWiPOM - Miniature wireless remote monitoring computer, data logger and MODBUS RTU
Part No. Description Price Stock
nanoWiPOM Miniature wireless remote monitoring computer, data logger and MODBUS RTU $179 30

Features


  • Based on the STM32F103VGT6 Cortex-M3 micro-controller
  • 8-MByte SPI DATAFlash
  • Micro-SD holder (up to 32 GB by inserting SDHC Card)
  • Choice of LTE or 3G modem
  • One USB device port
  • One RS485 serial port
  • Two RS232 serial ports ( one overlapped with RS485 )
  • Analog input terminals (2 x 4-20mA or 2 X 0-5V, jumper selectable), 12-bit resolution.
  • Digital input terminals (4 x dry contacts), also used as frequency and pulse counter inputs.
  • Digital output terminals (2 x 0.5A)
  • LED's for status
  • 3V battery holder for real-time clock
  • 10-30 Volt input power range ( needed for 4-20mA ) or 5V USB operation
  • Windows based WRTU Client allows data upload and tag configuration
  • Warranty Period: 3 years
