BRD-MMP-DAQ-2543-LOOP-8

8-channel, 0 to 4V, 0-20mA or 4-20mA jumper configurable analog inputs with 12-bit resolution.
Ideal for Internet of Things (IoT) applications.

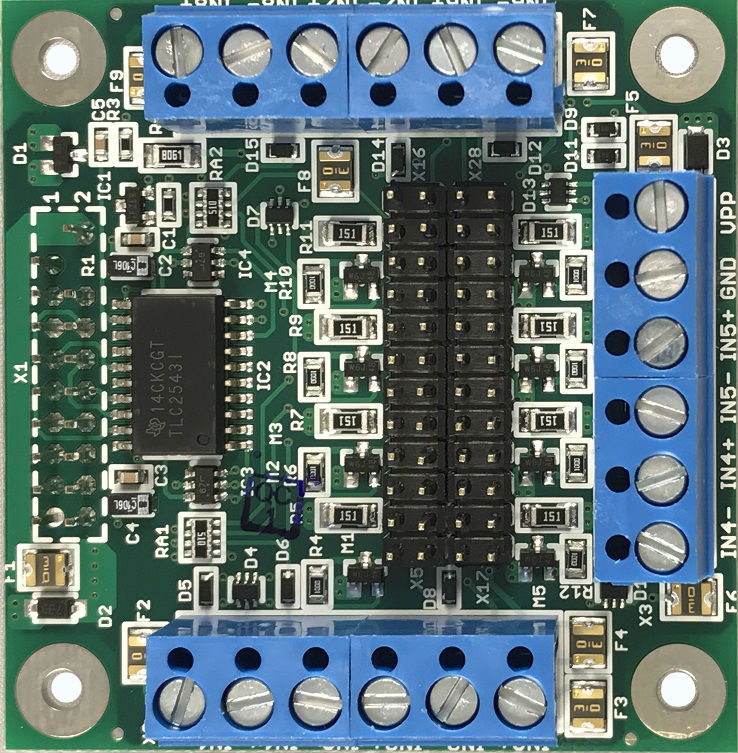

 BRD-MMP-DAQ-2543-LOOP-8 - 12-bit 8-channel Analog Peripheral Board
Part No. Description Price Stock
BRD-MMP-DAQ-2543-LOOP-8 12-bit 8-channel Analog Peripheral Board $59 23

The board directly interfaces via expansion connector to Single Board Computer (SBC) systems from Bipom Electronics such as 8051 boards, AVR boards, MSP430 boards, ARM boards

Features

  • TLC-2543, 12-bit ADC, 11 channels, 0 to 4.096 Volt input range, 10 microsecond conversion time
  • Voltage reference, 4.096V
  • Expansion connector
  • Analog input/output terminal blocks
  • 8 channel jumper configurable either 4-20mA current loop input or up to 4.096V analog voltage input
  • 6.7 uA resolution
  • 40 mA internal current limit on each loop
  • Dimensions are 2.35 X 2.40 inches ( 5.97 X 6.10 centimeters )
  • Mounting holes of 0.138 inches ( 3.5 millimeters ) on four corners
  • -30° - +85° C operating, -40° - +85° C storage temperature range
  • Warranty Period: 3 years
