BRD-MMP-HCD-4

4-channel high current driver peripheral board.
Ideal for Internet of Things (IoT) applications.

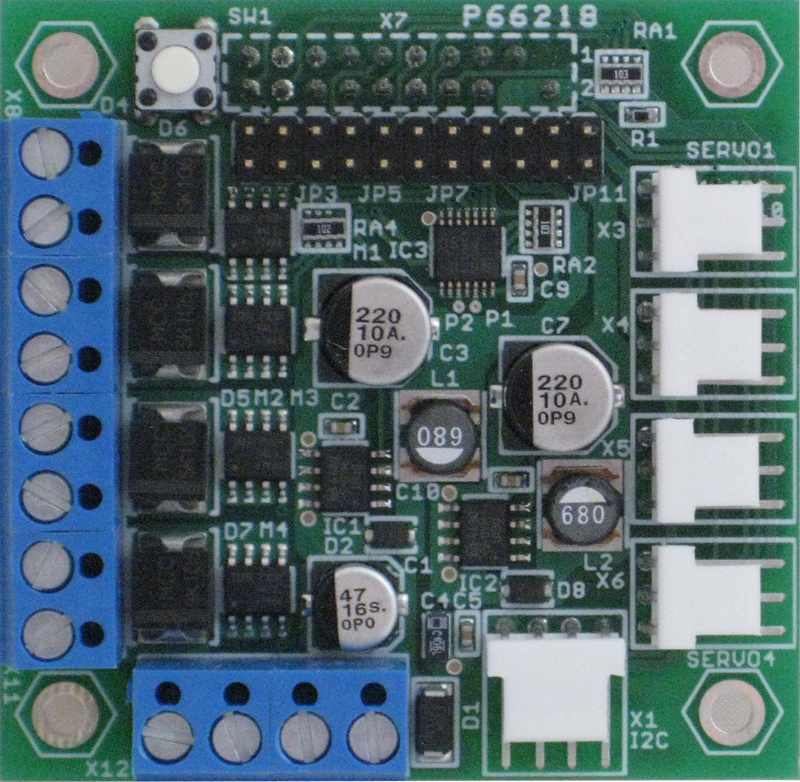

 BRD-MMP-HCD-4 - 4-channel high current driver peripheral board with servo outputs
Part No. Description Price Stock
BRD-MMP-HCD-4 4-channel high current driver peripheral board with servo outputs $44 ∗
BRD-MMP-HCD-4-PS 4-channel high current driver peripheral board with servo outputs and on-board power option $59 ∗
∗ Standard lead time is 1 week

Features

  • 4 open drain MOSFET outputs, 10A each, brought to screw terminal blocks
  • Maximum combined current on all channels: 20A
  • Servo motor connectors for connecting up to 4 radio-control style servo motors.
  • 20-pin Expansion Connector (X10) interface to a variety of micro-controller boards
  • I2C port for interfacing to sensors, displays
  • Push button
  • Dimensions are 2.35 X 2.40 inches (5.97 X 6.10 centimeters)
  • Mounting holes of 0.125 inches (3.18 millimeters) are on four corners
  • 40° to +85° C operating and storage temperature range
  • Warranty Period: 3 years

CAUTION: HCD-4 is NOT designed to drive AC loads. Do NOT try to connect 110VAC or 220VAC loads to HCD-4 as this will damage the board and anything else connected to it and may cause injury.
