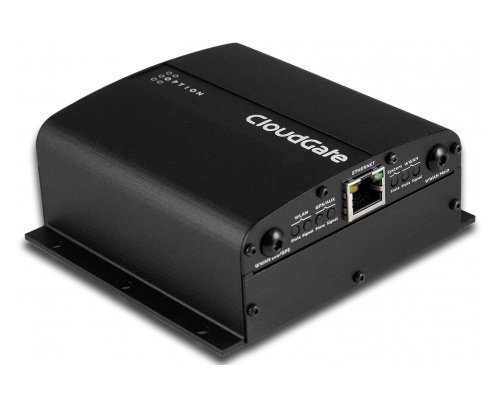

CloudGate M2M Gateway provides competitively priced LAN to WWAN routing and GPS functionality in a single basic unit certified on all major USA cellular operators (CDMA/EvDO and WCDMA/HSPA+). CloudGate is simple to configure locally or remotely from your PC, tablet or smartphone.
CloudGate Ethernet - Option CloudGate Gateway without Gobi Module 2.0
Part No. Description Price Stock
3009213 CloudGate Class 1 Div 2 Sticker $50 550
CG0102-11972 Option CloudGate Gateway without Gobi Module 2.0 $193 3
SL-WiPOM-LD-CG Router/gateway WiPOM software license for CLOUDGATE $30 ∗
∗ Standard lead time is 1 week

∗ The pricing includes a selection of a AC power supply or a DC power cable.

SPECIFICATIONS

Features Sub Feature Description
WWAN Modem Supported frequency
bands
  • GSM/GPRS/EDGE: 850/900/1800/1900 MHz
  • UMTS/HSDPA/HSUPA/HSPA+: 800-850/900/1900/2100
    • MHz and AWS band (1700/2100 MHz) (B1, B2, B4, B5, B6, B8)
  • CDMA 1xRTT/EV-DO rev0/EV-DO revA (GTM689 only): 800/1900 (BC0, BC1)
Max. Connectivity
speeds
  • HSPA+: 14.4 Mbps (Cat 10) down 5.76 (Cat 6) up
  • EV-DO RevA mode: 3.1 Mbps FL/1.8 Mbps RL
  • HSPA+ Rel 7 SW features CPC (DTX/DRX), Enhanced L2, EF-DPCH
Rx Diversity
  • Simultaneous Equalization and Rx Diversity on all bands,except for GSM/GPRS/EDGE
Connectors
  • 1 x SMA: WWAN Main
  • 1 x SMA: WWAN Div
Visual feedback
  • Seven 3 color LEDs showing system status and signal strength
GPS Assisted/Standalone
GPS
  • Standalone GPS, Assisted GPS, gps OneXTRA™
  • Wideband GPS processing (20MHz) for improved accuracy
CPU
  • ARM926EJ-S @ 450MHz
  • Memory available for customer applications
  • 30 Mb R/O flash for executables
  • 30 Mb R/W flash shared with system
  • 40 Mb free RAM
  • 1 Mb Configuration data
Ethernet
(IEEE 802.3)
  • 10/100Mb/s RJ45 Connector
SIM USIM/SIM connection
  • USIM/SIM connection - Class B and Class C
Expansion Slot
1 & 2
  • Expansion board for IO functions such as serial, USB, GPIO, Wi-Fi
Power DC Power in
  • 9-33 V DC
Connector type
  • Micro-Fit 3.0™, Dual Row, 4 Circuits
Current consumption
  • All measurements at 12V DC
  • CloudGate attached to 2G network, no Ethernet: 121mA.
  • CloudGate attached to 2G network, Ethernet connected: 136mA
  • CloudGate attached to 2G network, no Ethernet, 2G call (2Tx, 32dBm): 270mA, peak = 772mA
  • CloudGate attached to 3G network, no Ethernet, 3G call @ 2100MHz (band I): 341mA
Case Dimensions
  • 115 mm Χ 105 mm Χ 45 mm (4.53in Χ 4.13in Χ 1.77in)
Weight
  • 180 g
Mounting
  • 6 through holes for M4 bolts - 2 Χ 2 compatible with VESA Mount MIS-D 75 (Optional standard DIN rail mounting interface)
Enviromentals Operating temperature
  • -30°C to 70°C
Storage temperature
  • -40°C to +85°C
Humidity operational
  • 5% - 95% non condensing
Certification
  • FCC
  • IC
  • PTCRB
Standards
compliance
  • ROHS, Reach


CloudGate Class 1 Div 2 Sticker

Features

  • Simple, value priced WWAN M2M IP connectivity
  • Automatic connection monitoring and error recovery
  • Secure, redundant firmware and configuration images
  • Unique software and hardware configuration flexibility
  • Automatic provisioning of custom middleware
  • Warranty Period: 3 years
