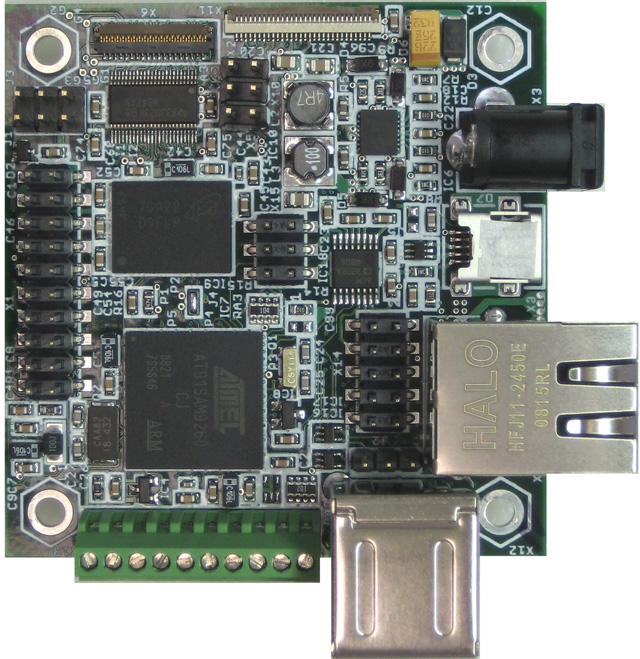

MINI-MAX/ARM9260-E

This product has been discontinued. Please contact BiPOM to have this product custom manufactured for you.

MINI-MAX/ARM9260-E is a powerful, 32-bit ARM9 (AT91SAM9260) based microcontroller system with fast Ethernet, USB and graphics LCD interface. It is capable of running Linux
Ideal for Internet of Things (IoT) applications.
MINI-MAX/ARM9260-E - MINI-MAX/ARM9260-E is a powerful, 32-bit ARM9 (AT91SAM9260) based microcontroller system with fast E
BiPOM Electronics is a proud ATMEL Consultant for ARM ( SAM7, SAM9 and AT91RM9200 ) Family of microcontrollers

Features

  • Based on the ATMEL AT91SAM9260-CU single-chip ARM Thumb Flash micro-controller.
  • 64-Mbyte (16Mx32) SDRAM (MT48H16M32LFCM-75)
  • 8-MByte SPI DATAFLASH (AT45DB642D-CNU)
  • 10/100 Mbit Ethernet port
  • Two USB host ports and one USB device port
  • Two RS232 serial ports
  • Analog terminals ( 4 analog inputs, 3V reference, 3.3V analog power)
  • 18-bit parallel port for an external 320x240 QVGA MTF-TQ24NN731-LB color LCD
  • Image sensor connector, can also be used as general I/O
  • Micro-SD holder
  • 3V battery holder for real-time clock
  • Configurable (either 3.3V or 5V levels) expansion slot to connect low-cost peripheral boards
  • 2.1mm power jack for 8-24VDC external power source
  • Warranty Period: 3 years

A USB Flash drive with preinstalled Debian is also available as an option.
